Split Flange Kit

Durable, Leak-Proof, Precision Engineered

Get a Quote Now Add Inquiry Cart

Description

Reviews

Two series of working pressure as below:

SAE J618 code 61 and ISO 6162-1 define the Flange connectors, ports and mounting surfaces for use at pressures of 3,5 MPa (35 bar) to 35 MPa (350bar), DN 13 to DN 127.

SAE J618 code 62 and ISO 6162-2 define the Flange connectors, ports and mounting surfaces for use at a pressure of 42 MPa (420 bar), DN 13 to DN 76.

Product Description

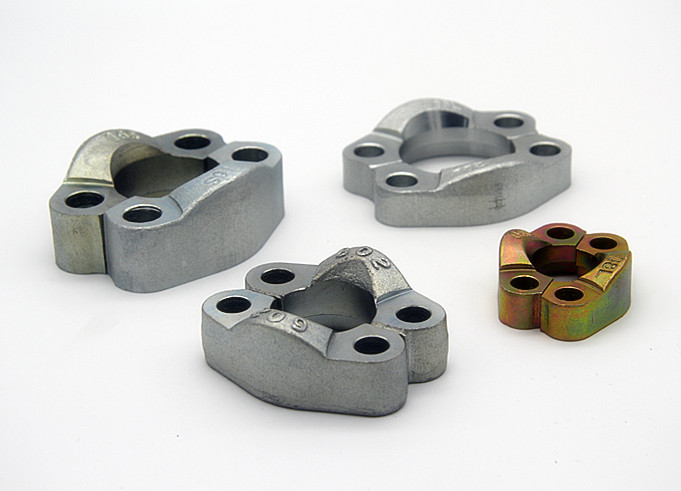

Part No.: Split Flange Kit

Features:

➢Made of carbon steel, leak-proof and reliable.

➢Engineered for a secure and reliable seal, ensuring no fluid leaks.

➢Surface-treated for enhanced protection against rust and wear.

➢Conforms to JIC standards, making it suitable for various hydraulic systems.

➢Designed for quick and hassle-free assembly, reducing downtime.

Specifications

NominalsizeDN a	d1	d2	O-ringsizecode b	Flatwasher(recom-mended)	Type1-metric screws
					of property class 10.9				Maximum	Minimum
									Maximum	Minimum
					d3Screwthread d	I1Screwlengthe	12Min.fullthread	ScrewtorqueN·m	workingpressure	burstpressure
	+0-1,5	max.						+10%-0	MPa (bar)	MPa (bar)
13	13,0	13,0	210	M8	M8	30	16	32	42 (420)	168 (1 680)
19	19,2	19,2	214	M10	M10	35	18	70	42 (420)	168 (1680]
25	25,6	25,6	219	M12	M12	45	23	130	42 (420)	168 (1 680)
32	32,0	32,0	222	M12	M12	45	23	130	42 (420)	168 (1 680)
38	38,2	38,2	225	M16	M16	55	27	295	42 (420)	168 (1680]
51	51,0	51,0	228	M20	M20	70	35	550	42 (420)	168 (1 680)
64	63,0	63	232	M24	M24	80	50	550	42 (420)	168 (1 680)
76	76,0	76	237	M30	M30	90	60	650	42 (420)	168 (1680)
