SAE J514 45° ELBOW JIC MALE 74° CONE / SAE O-RING BOSS L-SERIES -1JO4-OG

45° ELBOW JIC MALE 74° CONE / SAE O-RING

Get a Quote Now Add Inquiry Cart

Description

Reviews

Product Description

Part No.: 1JO4-OG/45° ELBOW JIC MALE 74° CONE / SAE O-RING

➢Made of carbon steel, leak-proof and reliable.

➢Engineered for a secure and reliable seal, ensuring no fluid leaks.

➢Surface-treated for enhanced protection against rust and wear.

➢Conforms to JIC standards, making it suitable for various hydraulic systems.

➢Designed for quick and hassle-free assembly, reducing downtime.

Specifications

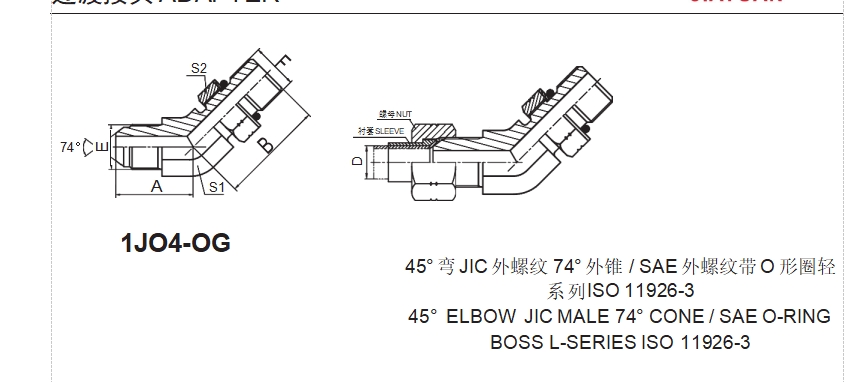

PART NO.		THREAD		O-RING				DIMENSIONS
	E		F		F 端	A	B	S1	S2
1JO4-04OG	7/16"X20		7/16"X20		O904	21	24	11	17
1JO4-04-06OG	7/16"X20		9/16"X18		O906	22.3	27.5	14	19
1JO4-04-08OG	7/16"X20		3/4"X16		O908	24.5	32.5	19	24
1JO4-05OG	1/2"X20		1/2"X20		O905	22	26.7	14	17
1JO4-05-04OG	1/2"X20		7/16"X20		O904	22	26.7	14	17
1JO4-06OG	9/16"X18		9/16"X18		O906	23.5	28	14	19
1JO4-06-04OG	9/16"X18		7/16"X20		O904	22.8	26	14	17
1JO4-06-05OG	9/16"X18		1/2"X20		O905	22.8	26	14	17
1JO4-06-08OG	9/16"X18		3/4"X16		O908	25	32.5	19	24
1JO4-06-10OG	9/16"X18		7/8"X14		O910	25.5	38.5	22	27
1JO4-08OG	3/4"X16		3/4"X16		O908	25.8	32.5	19	24
1JO4-08-06OG	3/4"X16		9/16"X18		O906	25.5	28	19	19
1JO4-08-10OG	3/4"X16		7/8"X14		O910	28	38.7	22	27
1JO4-08-12OG	3/4"X16		1.1/16"X12		O912	30	43.9	27	32
1JO4-10OG	7/8"X14		7/8"X14		O910	29.5	38.7	22	27
1JO4-10-08OG	7/8"X14		3/4"X16		O908	29.5	33	22	27
1JO4-10-12OG	7/8"X14		1.1/16"X12		O912	33	43.9	27	32
1JO4-12OG	1.1/16"X12		1.1/16"X12		O912	34	43.5	27	32
1JO4-12-10OG	1.1/16"X12		7/8"X14		O910	34	42	27	27
1JO4-12-16OG	1.1/16"X12		1.5/16"X12		O916	37	45.5	33	41
1JO4-14OG	1.3/16"X12		1.3/16"X12		O914	37	44	30	36
1JO4-16OG	1.5/16"X12		1.5/16"X12		O916	38	45.5	33	41
1JO4-16-12OG	1.5/16"X12		1.1/16"X12		O912	38	45	33	32
1JO4-16-20OG	1.5/16"X12		1.5/8"X12		O920	40.5	47	41	50
1JO4-20OG	1.5/8"X12		1.5/8"X12		O920	42	48.5	41	50
1JO4-20-24OG	1.5/8"X12		1.7/8"X12		O924	46	50	48	55
1JO4-24OG	1.7/8"X12		1.7/8"X12		O924	48	50	48	55
1JO4-32OG	2.1/2"X12		2.1/2"X12		O932	58	54	63	70

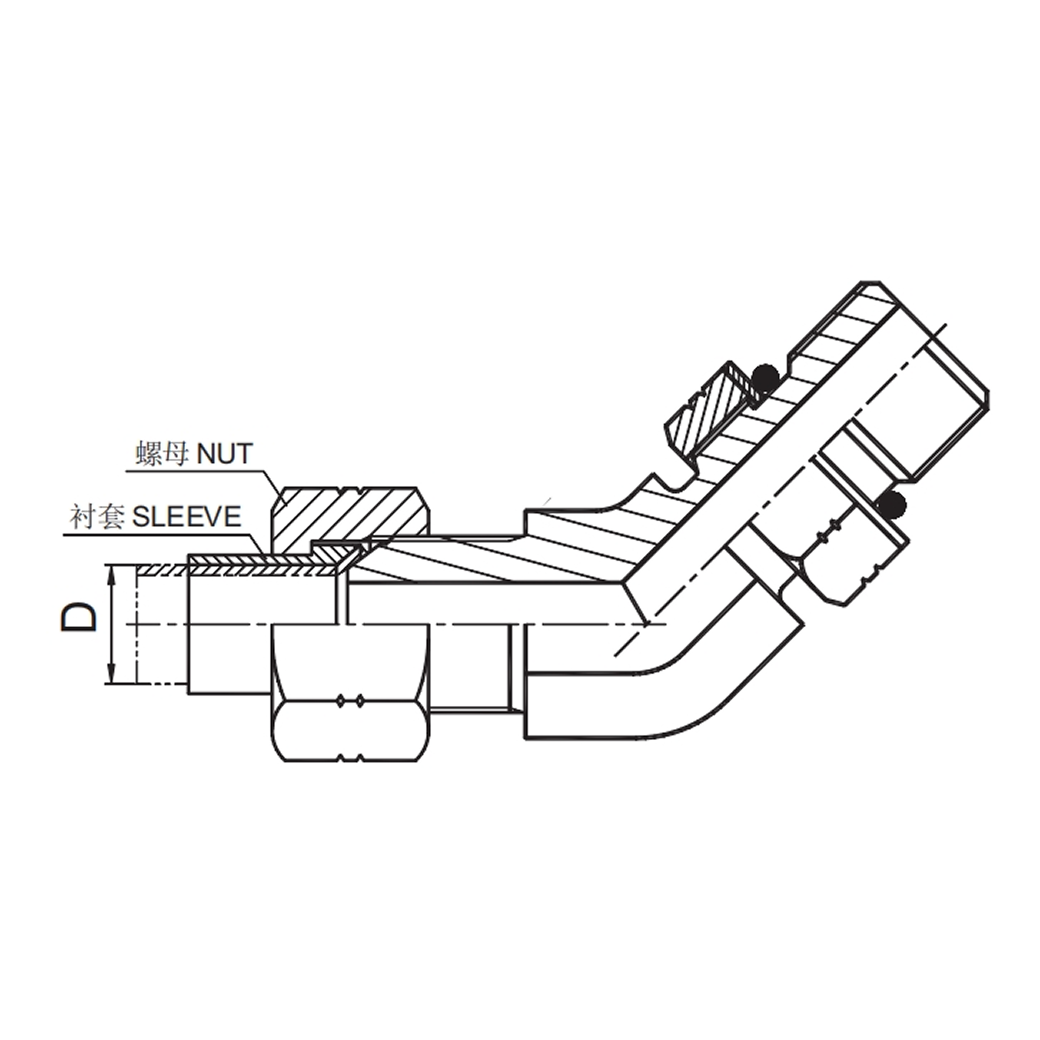

Note： 1 Nut and sleeveshould beordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2 F end is connected with ISO 11926-1port.
