Methods of adjustable stud end: It will be assembled with a locknut, back-washer, sealing by O-ring or O-ring+Retaining Ring. There are four standards of sealing port as follows:

Metric thread + O-ring + Retaining O-ring (ISO 9974)

Metric thread + O-ring ISO 6149

UN/UNF thread + O-ring ISO 11926 SAE J1926 ORB

BSPP thread + O-ring + Retaining Ring (ISO 1179/ DIN 3852)

Burst and cyclic endurance(impulse) tests shall be conducted in according with ISO 19879.

Product Description

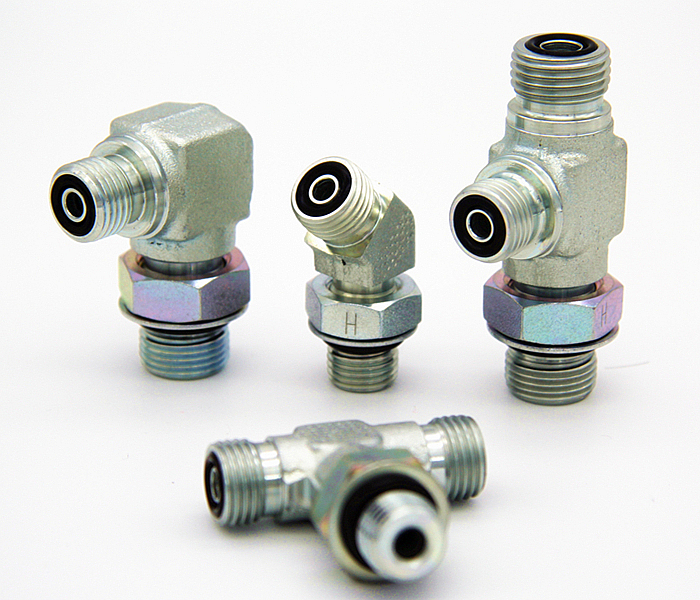

Part No.: 90° ELBOW ORFS MALE O-RING / BSP MALE O-RING

Features:

➢Made of carbon steel, leak-proof and reliable.

➢Engineered for a secure and reliable seal, ensuring no fluid leaks.

➢Surface-treated for enhanced protection against rust and wear.

➢Conforms to JIC standards, making it suitable for various hydraulic systems.

➢Designed for quick and hassle-free assembly, reducing downtime.

Specifications

代号	螺纹 THREAD		O 形圈 O RING		尺寸 DIMENSIONS
PART NO.	E	F	E 端	F 端	A	B	S1	S2
1FG9-04-02OG	9/16"X18	G1/8"X28	O011	O011	23	29	14	14
1FG9-04OG	9/16"X18	G1/4"X19	O011	O111	23	31.3	14	19
1FG9-04-06OG	9/16"X18	G3/8"X19	O011	O113	24	35.8	16	22
1FG9-06-04OG	11/16"X16	G1/4"X19	O012	O111	27	33.5	19	19
1FG9-06OG	11/16"X16	G3/8"X19	O012	O113	27	36.8	19	22
1FG9-06-08OG	11/16"X16	G1/2"X14	O012	O115	29	43.2	22	27
1FG9-08-06OG	13/16"X16	G3/8"X19	O014	O113	31	39.5	22	22
1FG9-08OG	13/16"X16	G1/2"X14	O014	O115	31	43.2	22	27
1FG9-10-08OG	1"X14	G1/2"X14	O016	O115	36.5	46.5	27	27
1FG9-10-12OG	1"X14	G3/4"X14	O016	O119	36.5	49.3	27	32
1FG9-12-08OG	1.3/16"X12	G1/2"X14	O018	O115	40.3	47.5	30	27
1FG9-12OG	1.3/16"X12	G3/4"X14	O018	O119	40.3	52	30	32
1FG9-12-16OG	1.3/16"X12	G1"X11	O018	O217	42.5	53	33	41
1FG9-16-12OG	1.7/16"X12	G3/4"X14	O021	O119	44.5	56	36	32
1FG9-16OG	1.7/16"X12	G1"X11	O021	O217	44.5	56	36	41
1FG9-20-16OG	1.11/16"X12	G1"X11	O025	O217	47.5	60	41	41
1FG9-20OG	1.11/16"X12	G1.1/4"X11	O025	O222	47.5	60	41	50
1FG9-24OG	2"X12	G1.1/2"X11	O029	O224	51.5	65.5	50	55
注：F 端与DIN 3852 油口相配。 Note：F end is connected with DIN 3852 port.
