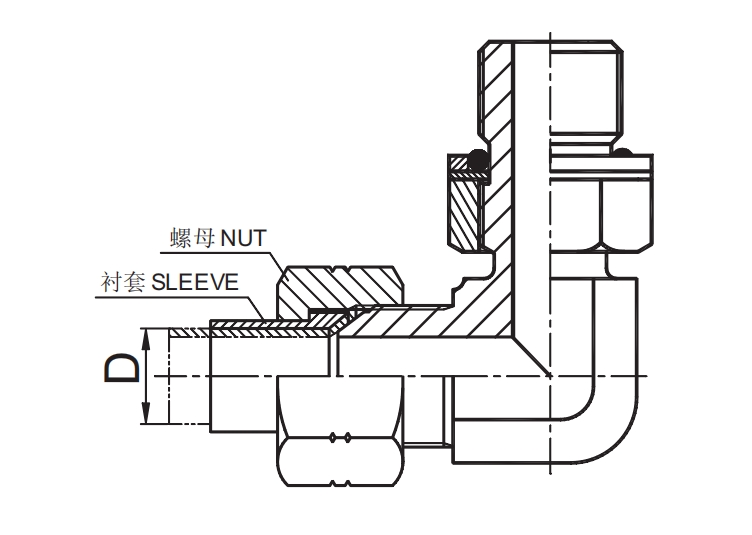

JIC Fittings SAE J514 90° ELBOW JIC MALE 74° CONE-1JH9

90° ELBOW JIC MALE 74° CONE / METIRC MALE

Get a Quote Now Add Inquiry Cart

Description

Reviews

Product Description

Part No.: 1JH9-OG/JIC MALE 74° CONE

Features:

➢Made of carbon steel, leak-proof and reliable.

➢Engineered for a secure and reliable seal, ensuring no fluid leaks.

➢Surface-treated for enhanced protection against rust and wear.

➢Conforms to JIC standards, making it suitable for various hydraulic systems.

➢Designed for quick and hassle-free assembly, reducing downtime.

Specifications

PART NO.	THREAD		O-RING		DIMENSIONS
PART NO.	THREAD		O-RING		DIMENSIONS
	E	F		F 端	A	B	S1	S2
1JH9-04-10OG	7/16"X20	M10X1		O08.1X1.6	24.5	27.5	11	14
1JH9-04-12OG	7/16"X20	M12X1.5		O09.3X2.4	24.5	30.3	11	17
1JH9-04-14OG	7/16"X20	M14X1.5		O11.3X2.4	26.6	32	14	19
1JH9-05-10OG	1/2"X20	M10X1		O08.1X1.6	26.5	28.5	14	14
1JH9-05-12OG	1/2"X20	M12X1.5		O09.3X2.4	26.5	32	14	17
1JH9-05-14OG	1/2"X20	M14X1.5		O11.3X2.4	26.5	32	14	19
1JH9-06-14OG	9/16"X18	M14X1.5		O11.3X2.4	26.9	32	14	19
1JH9-06-16OG	9/16"X18	M16X1.5		O13.3X2.4	28	34.8	16	22
1JH9-06-18OG	9/16"X18	M18X1.5		O15.3X2.4	30	37	19	24
1JH9-08-16OG	3/4"X16	M16X1.5		O13.3X2.4	32	38	19	22
1JH9-08-18OG	3/4"X16	M18X1.5		O15.3X2.4	33	38	19	24
1JH9-08-22OG	3/4"X16	M22X1.5		O19.3X2.4	34.8	40.2	22	27
1JH9-10-16OG	7/8"X14	M16X1.5		O13.3X2.4	38	38	22	22
1JH9-10-18OG	7/8"X14	M18X1.5		O15.3X2.4	38	39.5	22	24
1JH9-10-22OG	7/8"X14	M22X1.5		O19.3X2.4	38	42.5	22	27
1JH9-12-22OG	1.1/16"X12	M22X1.5		O19.3X2.4	45	44	27	27
1JH9-12-27OG	1.1/16"X12	M27X2		O23.5X3.0	44.2	48.5	27	32
1JH9-16-27OG	1.5/16"X12	M27X2		O23.5X3.0	49	52	33	32
1JH9-16-33OG	1.5/16"X12	M33X2		O29.5X3.0	49	52.5	33	41
1JH9-20-42OG	1.5/8"X12	M42X2		O38.5X3.0	55.5	57.2	41	50
1JH9-24-48OG	1.7/8"X12	M48X2		O44.5X3.0	62.5	62.5	48	55
Note： 1 Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitablefor metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2 F end is fit for ISO 9974-1 port or ISO 6149-1 port when useless of retaining ring.
