45° 公制内螺纹24°锥带O 形圈轻系列

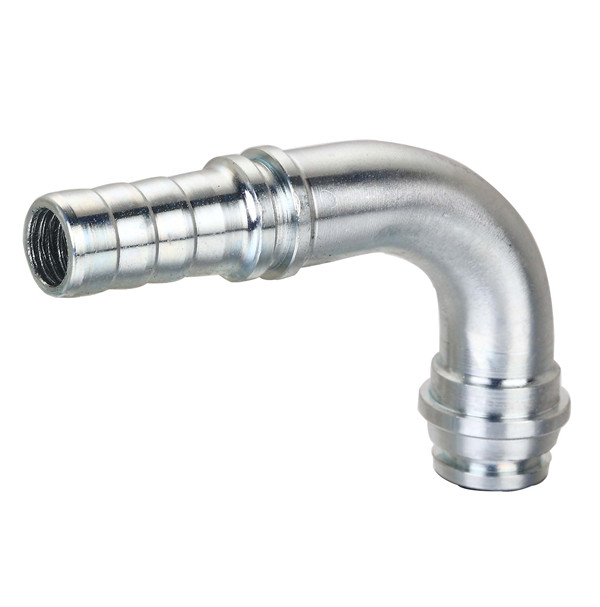

45° METRIC FEMALE 24 CONE O- RING L. T. ISO 12151 - 2 -- DIN 3865

Product Description

Part No.: 20441

Features:

➢Made of carbon steel, leak-proof and reliable.

➢Engineered for a secure and reliable seal, ensuring no fluid leaks.

➢Surface-treated for enhanced protection against rust and wear.

➢Conforms to JIC standards, making it suitable for various hydraulic systems.

➢Designed for quick and hassle-free assembly, reducing downtime.

Specifications

序号	产品代号	螺纹 E	胶管HOSE BORE		O型圈	尺寸 DIMENSIONS
序号	产品代号	螺纹 E	公称内径 DN	标号 DASH	O-RING	A	C	H	S2
1	20441-12-04	M12X1.5	6	4	O04.5X1.5	35.7	1	16.9	S17
2	20441-14-04T	M14X1.5	6	4	O06.5X1.5	36	1.7	16.4	S17
3	20441-14-05	M14X1.5	8	5	O06.5X1.5	37	2	16.4	S19
4	20441-16-04T	M16X1.5	6	4	O08.0X1.5	36.3	2.1	16.6	S19
5	20441-16-05T	M16X1.5	8	5	O08.0X1.5	39.7	2.1	17.3	S19
6	20441-16-06	M16X1.5	10	6	O08.0X1.5	41.2	2	17.9	S22
7	20441-18-04T	M18X1.5	6	4	O10.0X1.5	37.2	1.5	17.5	S22
8	20441-18-05T	M18X1.5	8	5	O10.0X1.5	41.3	1.5	19	S22
9	20441-18-06T	M18X1.5	10	6	O10.0X1.5	43	1.5	19	S22
10	20441-18-08	M18X1.5	13	8	O10.0X1.5	45.3	2.5	20.2	S24
11	20441-22-06T	M22X1.5	10	6	O12.0X2.0	43.4	3	19.4	S27
12	20441-22-08T	M22X1.5	13	8	O12.0X2.0	48.1	3	21.2	S27
13	20441-22-10W	M22X1.5	16	10	O12.0X2.0	56.5	3	25	S27
14	20441-26-08T	M26X1.5	13	8	O15.0X2.0	49.1	2.1	22.2	S32
15	20441-26-10T	M26X1.5	16	10	O15.0X2.0	61.2	2.1	24.9	S32
16	20441-26-12W	M26X1.5	19	12	O15.0X2.0	70.1	2.1	28.9	S36
17	20441-30-10T	M30X2.0	16	10	O20.0X2.0	62.5	3.8	26.2	S36
18	20441-30-12T	M30X2.0	19	12	O20.0X2.0	69.1	3.8	27.5	S36
19	20441-30-16W	M30X2.0	25	16	O20.0X2.0	78.6	3.8	31.9	S36
20	20441-36-12T	M36X2.0	19	12	O26.0X2.0	69.4	4.5	27.7	S41
21	20441-36-16T	M36X2.0	25	16	O26.0X2.0	81.4	4.5	31	S41
22	20441-36-20W	M36X2.0	32	20	O26.0X2.0	96.1	4.5	36.7	S41
23	20441-45-16T	M45X2.0	25	16	O32.0X2.5	83.6	4	33.2	S50
24	20441-45-20T	M45X2.0	32	20	O32.0X2.5	96.5	4	36.2	S50
25	20441-45-24W	M45X2.0	38	24	O32.0X2.5	109	4	42.2	S50
26	20441-52-20T	M52X2.0	32	20	O38.0X2.5	97.2	4	36.9	S60
27	20441-52-24T	M52X2.0	38	24	O38.0X2.5	111	4	41.4	S60
注：表中代号用于编织软管，如用于缠绕软管代号改为20442-XX-XX。
Note:NO. in table match with braiYduedyahoosJeia.Py/uNa2n0H44y2d-rXaXulmicaFtcihttiwnigtsh sFpaircatlohryose.
