DIN One piece hose fitting

it is a assembly part which crimp ferrule into hose fitting

Get a Quote Now Add Inquiry Cart

Description

Reviews

公制外螺纹24°内锥面轻系列

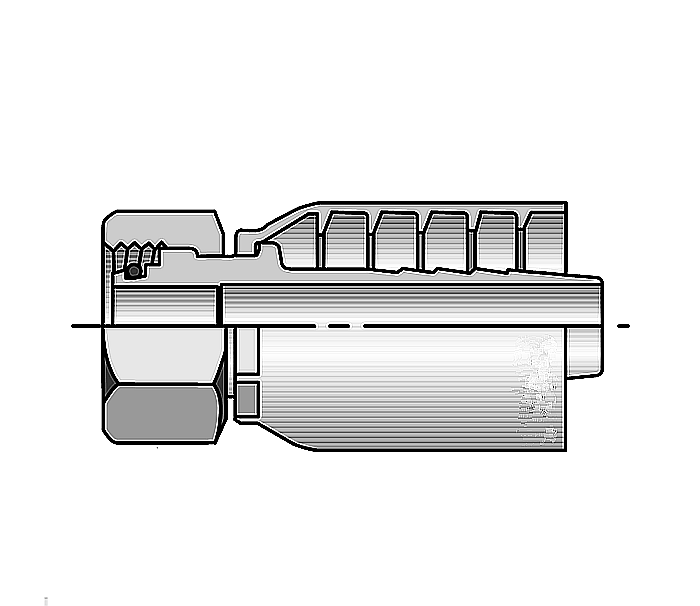

METRIC MALE 24° CONE SEAT L.T.DIN 3853

Product Description

Part No.: One piece hose fitting DIN 10411Y

Features:

➢Made of carbon steel, leak-proof and reliable.

➢Engineered for a secure and reliable seal, ensuring no fluid leaks.

➢Surface-treated for enhanced protection against rust and wear.

➢Conforms to JIC standards, making it suitable for various hydraulic systems.

➢Designed for quick and hassle-free assembly, reducing downtime.

Specifications

序号	产品代号	螺纹 E	胶管HOSE BORE		硬管外径	尺寸 DIMENSIONS
SN	PART NO.	THREAD E	公称内径 DN	标号 DASH	TUBE O.D.	A	C	S1
1	10411Y-14-04	M 14X1.5	6	4	8	20.5	10	14
2	10411Y-16-04	M 16X1.5	6	4	10	22.5	11	17
3	10411Y-16-05	M 16X1.5	8	5	10	22.5	11	17
4	10411Y-18-06	M 18X1.5	10	6	12	22.5	11	19
5	10411Y-22-08	M 22X1.5	13	8	15	26	12	24
6	10411Y-26-10	M 26X1.5	16	10	18	27	12	27
7	10411Y-30-12	M 30X2	19	12	22	30	14	32
8	10411Y-36-16	M 36X2	25	16	28	31.5	14	41
9	10411Y-45-20	M 45X2	32	20	35	37	16	46
10	10411Y-52-24	M 52X2	38	24	42	38	16	55
注：表中代号用于编织软管，如用于缠绕软管代号改为10412Y-XX-XX。
Note:NO. in table match with braided hose.No. of 10412Y-XX match with spiral hose.
