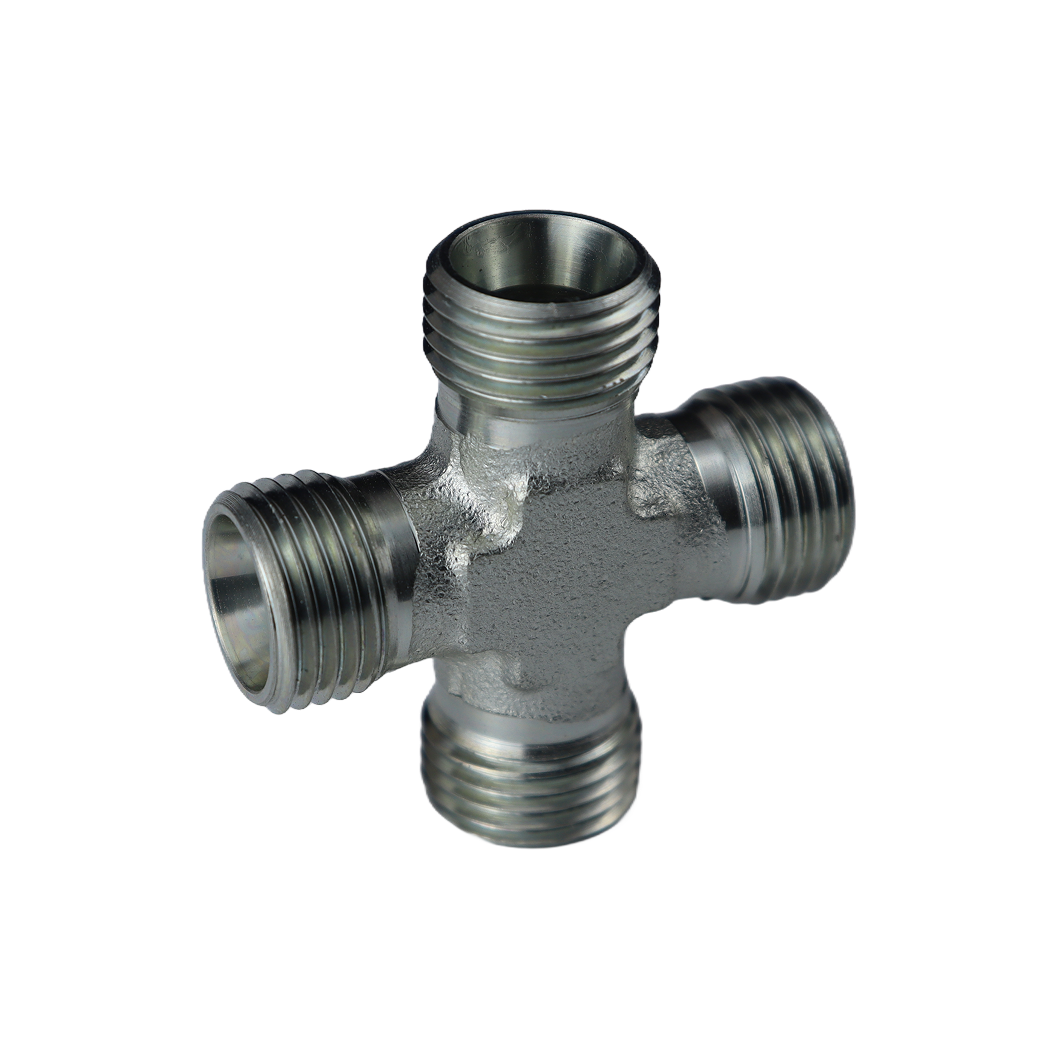

DIN 2353-(XC-RN) Cross Fittings

Description

Reviews

Design & Structure:

Four-Port Configuration: Cross fittings feature a central port with four equally spaced branch ports, allowing for the distribution or collection of fluid flow in multiple directions.
Compression Mechanism: These fittings utilize a compression system with a cutting ring that deforms to create a tight, leak-proof seal when the nut is tightened. This mechanism simplifies assembly and disassembly without compromising the integrity of the connection.

Material Options:

Carbon Steel: Provides strength and durability for general hydraulic applications.
Stainless Steel (AISI 316L): Offers superior corrosion resistance, making it suitable for marine, chemical, and food processing environments.

Product Description

Part No.: XC,XD;XC-RN,XD-RN

Features:

➢Made of carbon steel, leak-proof and reliable.

➢Engineered for a secure and reliable seal, ensuring no fluid leaks.

➢Surface-treated for enhanced protection against rust and wear.

➢Conforms to JIC standards, making it suitable for various hydraulic systems.

➢Designed for quick and hassle-free assembly, reducing downtime.

Specifications

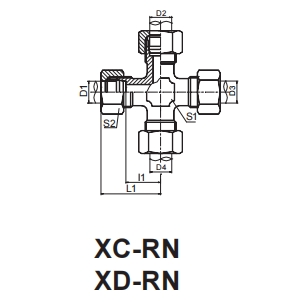

代号	螺纹 THREAD	管子外径 TUBE O.D.	尺寸 DIMENSIONS				压力等级
PART NO.	E,F,G,H	D1,D2,D3,D4	l1	L1	S1	S2	MPa
XC-12	M12X1.5	6	12	27	12	14	31.5轻系列L
XC-14	M14X1.5	8	14	29	12	17
XC-16	M16X1.5	10	15	30	14	19
XC-18	M18X1.5	12	17	32	17	22
XC-22	M22X1.5	15	21	36	19	27
XC-26	M26X1.5	18	23.5	40	24	32
XC-30	M30X2	22	27.5	44	27	36	16轻系列L
XC-36	M36X2	28	30.5	47	36	41
XC-45	M45X2	35	34.5	56	41	50
XC-52	M52X2	42	40	63	50	60
XD-14	M14X1.5	6	16	31	12	17	63重系列S
XD-16	M16X1.5	8	17	32	14	19
XD-18	M18X1.5	10	17.5	34	17	22
XD-20	M20X1.5	12	21.5	38	17	24
XD-22	M22X1.5	14	22	40	19	27
XD-24	M24X1.5	16	24.5	43	24	30	40重系列S
XD-30	M30X2	20	26.5	48	27	36
XD-36	M36X2	25	30	54	36	46
XD-42	M42X2	30	35.5	62	41	50
XD-52	M52X2	38	41	72	50	60	31.5 重系列S
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”, 如XC-30RN。 Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example XC-30RN.
