DIN Adapters
DIN 2353-UN、UNF THREAD STUD ENDS WITH O-RING SEALING ISO 11926
Most popular Metric Hydraulic Fittings
Description
Reviews
Key Characteristics
Standard: Manufactured according to DIN 2353 (German Standard) and ISO 8434-1 (International Standard) for hydraulic fittings, which specify the dimensions, thread types, and materials for the fitting.
Connection Methods
-
24° Compression Cutting Ring Seal: One end uses a 24° compression (bite-type) cutting ring that compresses onto the tube, forming a mechanical seal ideal for high-pressure hydraulic systems.
-
UN/UNF Thread Stud Ends with O-Ring Sealing (ISO 11926): The other end features a UN/UNF (Unified National/Unified National Fine) thread stud end, designed according to ISO 11926. It utilizes an O-ring as the sealing element, ensuring a highly reliable and leak-resistant connection. This type of connection is particularly well-suited for softer counter materials, such as aluminum alloy housings, preventing damage to the mating surface. Additionally, it is highly effective for gas applications, offering secure sealing and preventing leaks.
Material
Typically made from carbon steel, stainless steel, or other alloys depending on the application and fluid compatibility.
Product Description

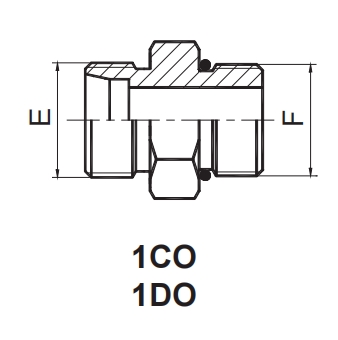

Part No.: 1CO,1DO,1CO-RN,1DO-RN
Features:
➢Made of carbon steel, leak-proof and reliable.
➢Engineered for a secure and reliable seal, ensuring no fluid leaks.
➢Surface-treated for enhanced protection against rust and wear.
➢Conforms to JIC standards, making it suitable for various hydraulic systems.
➢Designed for quick and hassle-free assembly, reducing downtime.
Specifications
About Us
Founded in 1998, Yuyao Jiayuan Hydraulic Fitting Factory is a leading manufacturer of hydraulic fittings and accessories for engineering and agricultural machinery. We are ISO 9001 and IATF 16949 certified, ensuring top-quality products. Specializing in hydraulic pipeline connections to international standards (DIN, ISO, SAE, JIS, BSP), we offer manifold blocks, flanges, adapters, hose assemblies, and OEM parts. With advanced equipment and a dedicated team, we serve global markets, including Japan, Germany, the USA, and more, delivering value and innovation to our customers.
Factory
If you need more hydraulic fittings, please contact us as soon as possible!
