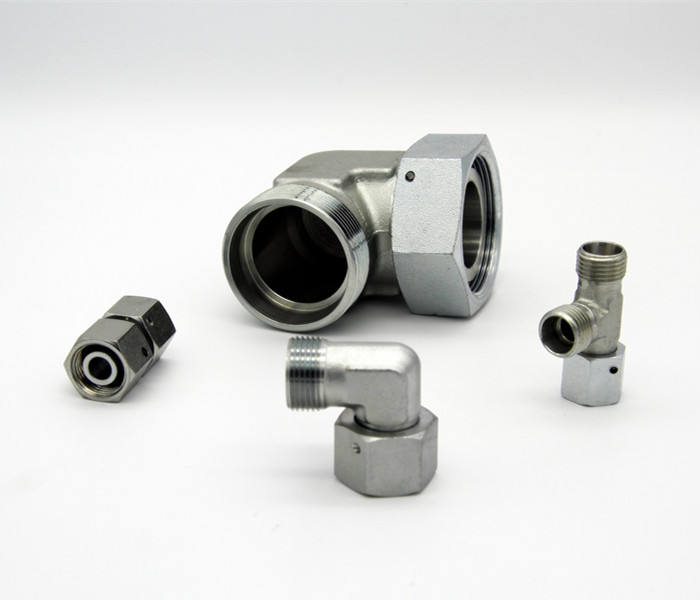

1. Definition: 24°DKO swivel connector is according to DIN 3861/DIN EN ISO 8434-4 standard, this end including Fitting body, Nut, O-ring and thrust wire(assembly). There are two types of usage, One is 24°welding cone type nipple(will need nut and o-ring to assembly), another one is Swivel type connector assembled by fittings body, nut, o-ring and thrust wire.
2. Methods of Connection: 24°DKO swivel connector female will mate to male connection DIN 3861/ISO 8434-1.

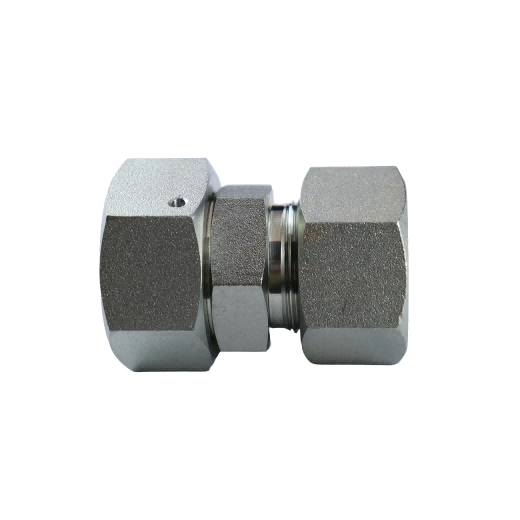

Product Description
Part No.: 2C, 2D; 2C-RN, 2D-RN
Features: Standpipe tube reducer with O-ring seal
➢Made of carbon steel,stainless steel, leak-proof and reliable.
Specifications
PART NO.
THREAD
TUBE O.D.
DIMENSIONS
MPa
E
F
D1
D2
l1
L1
S1
S2
S3
2C-12-14
M12X1.5
M14X1.5
6
8
23.5
38
12
14
17
31.5L
2C-12-16
M12X1.5
M16X1.5
6
10
25
40
14
14
19
2C-14-16
M14X1.5
M16X1.5
8
10
25
40
14
17
19
2C-12-18
M12X1.5
M18X1.5
6
12
25
40
17
14
22
2C-14-18
M14X1.5
M18X1.5
8
12
25
40
17
17
22
2C-16-18
M16X1.5
M18X1.5
10
12
26
41
17
19
22
2C-12-22
M12X1.5
M22X1.5
6
15
28.5
43
19
14
27
2C-14-22
M14X1.5
M22X1.5
8
15
28.5
43
19
17
27
2C-16-22
M16X1.5
M22X1.5
10
15
29.5
44
19
19
27
2C-18-22
M18X1.5
M22X1.5
12
15
29.5
44
19
22
27
2C-12-26
M12X1.5
M26X1.5
6
18
28
43
24
14
32
2C-22-26
M22X1.5
M26X1.5
15
18
30
45
24
27
32
2C-12-30
M12X1.5
M30X2
6
22
32
47
27
14
36
16L
2C-14-30
M14X1.5
M30X2
8
22
32
47
27
17
36
2C-16-30
M16X1.5
M30X2
10
22
33
48
27
19
36
2C-18-30
M18X1.5
M30X2
12
22
33
48
27
22
36
2C-22-30
M22X1.5
M30X2
15
22
34
49
27
27
36
2C-26-30
M26X1.5
M30X2
18
22
33.5
50
27
32
36
2C-12-36
M12X1.5
M36X2
6
28
34
49
36
14
41
2C-14-36
M14X1.5
M36X2
8
28
34
49
36
17
41
2C-16-36
M16X1.5
M36X2
10
28
35
50
36
19
41
2C-18-36
M18X1.5
M36X2
12
28
35
50
36
22
41
2C-22-36
M22X1.5
M36X2
15
28
36
51
36
27
41
2C-26-36
M26X1.5
M36X2
18
28
35.5
52
36
32
41
2C-30-36
M30X2
M36X2
22
28
37.5
54
36
36
41
2C-12-45
M12X1.5
M45X2
6
35
37
52
41
14
50
2C-14-45
M14X1.5
M45X2
8
35
37
52
41
17
50
2C-16-45
M16X1.5
M45X2
10
35
38
53
41
19
50
2C-18-45
M18X1.5
M45X2
12
35
38
53
41
22
50
2C-22-45
M22X1.5
M45X2
15
35
39
54
41
27
50
2C-26-45
M26X1.5
M45X2
18
35
38.5
55
41
32
50
2C-30-45
M30X2
M45X2
22
35
40.5
57
41
36
50
2C-36-45
M36X2
M45X2
28
35
40.5
57
41
41
50
2C-12-52
M12X1.5
M52X2
6
42
40.5
55
50
14
60
2C-14-52
M14X1.5
M52X2
8
42
40.5
55
50
17
60
2C-16-52
M16X1.5
M52X2
10
42
41.5
56
50
19
60
2C-18-52
M18X1.5
M52X2
12
42
41.5
56
50
22
60
2C-22-52
M22X1.5
M52X2
15
42
42.5
58
50
27
60
2C-26-52
M26X1.5
M52X2
18
42
42
58
50
32
60
2C-30-52
M30X2
M52X2
22
42
44
60
50
36
60
2C-36-52
M36X2
M52X2
28
42
44
61
50
41
60
2C-45-52
M45X2
M52X2
35
42
43
65
50
50
60
2D-14-16
M14X1.5
M16X1.5
6
8
27
42
14
17
19
63S
2D-14-18
M14X1.5
M18X1.5
6
10
27.5
42
17
17
22
2D-16-18
M16X1.5
M18X1.5
8
10
27.5
42
17
19
22
2D-14-20
M14X1.5
M20X1.5
6
12
29
44
17
17
24
2D-16-20
M16X1.5
M20X1.5
8
12
29
44
17
19
24
2D-18-20
M18X1.5
M20X1.5
10
12
31
46
19
22
24
2D-14-22
M14X1.5
M22X1.5
6
14
31.5
46
19
17
27
2D-16-22
M16X1.5
M22X1.5
8
14
31.5
46
19
19
27
2D-18-22
M18X1.5
M22X1.5
10
14
31
47
19
22
27
2D-20-22
M20X1.5
M22X1.5
12
14
31
47
22
24
27
2D-14-24
M14X1.5
M24X1.5
6
16
32
47
22
17
30
40S
2D-16-24
M16X1.5
M24X1.5
8
16
32
47
22
19
30
2D-18-24
M18X1.5
M24X1.5
10
16
31.5
48
22
22
30
2D-20-24
M20X1.5
M24X1.5
12
16
33.5
50
22
24
30
2D-22-24
M22X1.5
M24X1.5
14
16
33
51
24
27
30
2D-14-30
M14X1.5
M30X2
6
20
36
51
27
17
36
2D-16-30
M16X1.5
M30X2
8
20
36
51
27
19
36
2D-18-30
M18X1.5
M30X2
10
20
35.5
52
27
22
36
2D-20-30
M20X1.5
M30X2
12
20
35.5
52
27
24
36
2D-22-30
M22X1.5
M30X2
14
20
37
55
27
27
36
2D-24-30
M24X1.5
M30X2
16
20
37.5
55
30
30
36
2D-14-36
M14X1.5
M36X2
6
25
38.5
53
36
17
46
2D-16-36
M16X1.5
M36X2
8
25
38.5
53
36
19
46
2D-18-36
M18X1.5
M36X2
10
25
38
54
36
22
46
2D-20-36
M20X1.5
M36X2
12
25
38
54
36
24
46
2D-22-36
M22X1.5
M36X2
14
25
39.5
57
36
27
46
2D-24-36
M24X1.5
M36X2
16
25
39
57
36
30
46
2D-30-36
M30X2
M36X2
20
25
39
61
36
36
46
2D-14-42
M14X1.5
M42X2
6
30
44
59
41
17
50
2D-16-42
M16X1.5
M42X2
8
30
44
59
41
19
50
2D-18-42
M18X1.5
M42X2
10
30
43.5
60
41
22
50
2D-20-42
M20X1.5
M42X2
12
30
43.5
60
41
24
50
2D-22-42
M22X1.5
M42X2
14
30
45
63
41
27
50
2D-24-42
M24X1.5
M42X2
16
30
44.5
63
41
30
50
2D-30-42
M30X2
M42X2
20
30
44.5
66
41
36
50
2D-36-42
M36X2
M42X2
25
30
44
69
41
46
50
2D-14-52
M14X1.5
M52X2
6
38
47.5
62
50
17
60
31.5S
2D-16-52
M16X1.5
M52X2
8
38
47.5
62
50
19
60
2D-18-52
M18X1.5
M52X2
10
38
47
63
50
22
60
2D-20-52
M20X1.5
M52X2
12
38
47
63
50
24
60
2D-22-52
M22X1.5
M52X2
14
38
48.5
66
50
27
60
2D-24-52
M24X1.5
M52X2
16
38
48
66
50
30
60
2D-30-52
M30X2
M52X2
20
38
48
70
50
36
60
2D-36-52
M36X2
M52X2
25
38
48.5
73
50
46
60
2D-42-52
M42X2
M52X2
30
38
49
76
50
50
60
Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 2D-30-52RN.
