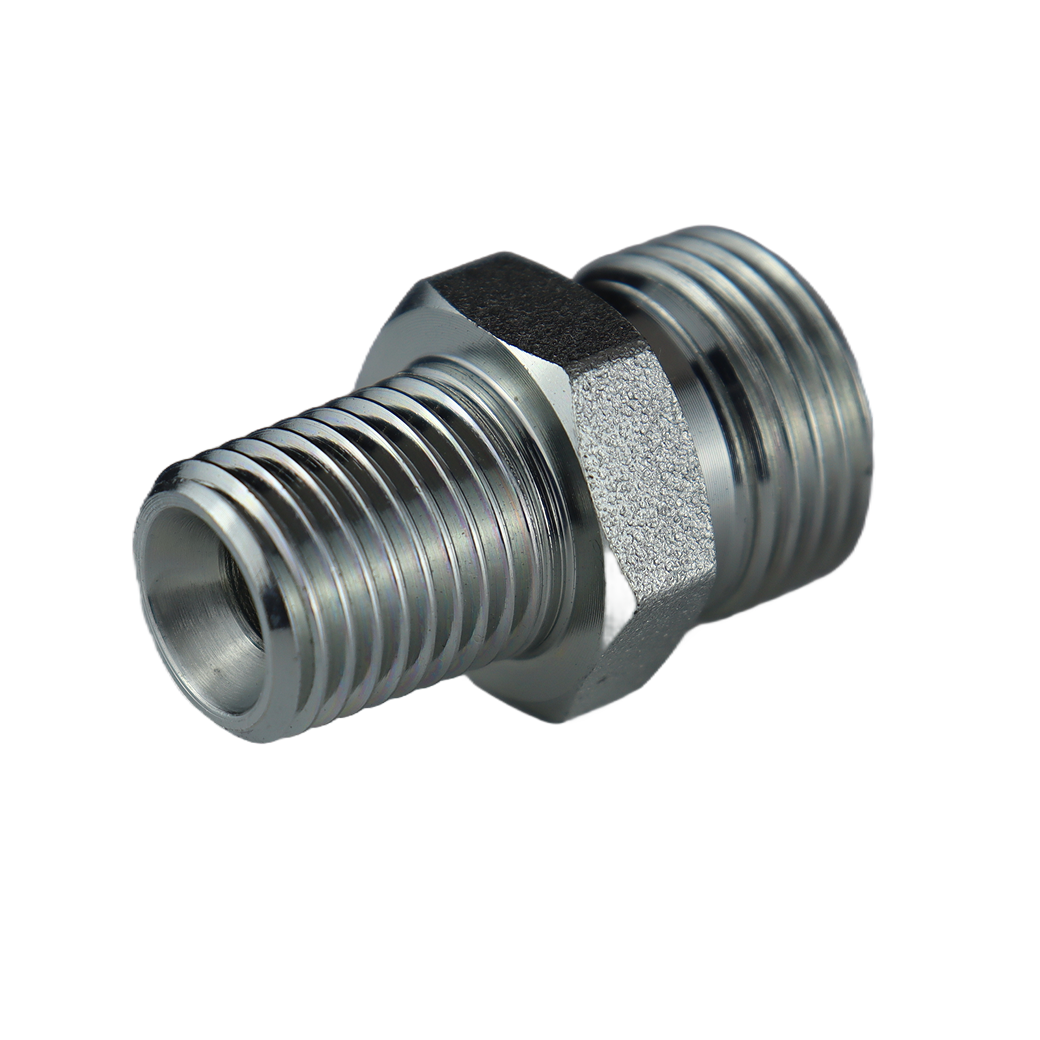

DIN 2353-NPT MALE

Description

Reviews

Key Characteristics

Standard: Manufactured according to DIN 2353 (German Standard) and ISO 8434-1 (International Standard) for hydraulic fittings, which specify the dimensions, thread types, and materials for the fitting.

Connection Methods

24° Compression Cutting Ring Seal: One end uses a 24° compression (bite-type) cutting ring that compresses onto the tube, forming a mechanical seal ideal for high-pressure hydraulic systems.
NPT Male (ANSI B1.20.1): The other end has an NPT (National Pipe Taper) male thread, manufactured according to ANSI B1.20.1. This type of tapered thread forms a pressure-tight seal through thread deformation, commonly used in hydraulic and pneumatic systems for secure and leak-resistant connections.

Material

Typically made from carbon steel, stainless steel, or other alloys depending on the application and fluid compatibility.

Product Description

Part No.: 1CN,1DN,1CN-RN,1DN-RN

Features:

➢Made of carbon steel, leak-proof and reliable.

➢Engineered for a secure and reliable seal, ensuring no fluid leaks.

➢Surface-treated for enhanced protection against rust and wear.

➢Conforms to JIC standards, making it suitable for various hydraulic systems.

➢Designed for quick and hassle-free assembly, reducing downtime.

Specifications

代号	螺纹 THREAD		管子外径 TUBE O.D.	尺寸 DIMENSIONS				压力等级
PART NO.	E	F	D1	l1	L1	S1	S2	MPa
1CN-08-02	M8X1	Z1/8"X27	4	14.4	24.4	11	10	10特轻系列LL
1CN-10-02LL	M10X1	Z1/8"X27	6	12.9	24.4	11	12
1CN-12-02LL	M12X1	Z1/8"X27	8	13.9	25.4	12	14
1CN-12-02	M12X1.5	Z1/8"X27	6	13.4	28.4	12	14	31. 5轻系列L
1CN-12-04	M12X1.5	Z1/4"X18	6	17.2	32.2	17	14
1CN-14-04	M14X1.5	Z1/4"X18	8	17.2	32.2	14	17
1CN-16-04	M16X1.5	Z1/4"X18	10	18.2	33.2	17	19
1CN-16-06	M16X1.5	Z3/8"X18	10	19.9	53	19	19
1CN-18-04	M18X1.5	Z1/4"X18	12	19.2	34.2	19	22
1CN-18-06	M18X1.5	Z3/8"X18	12	19.9	34.9	19	22
1CN-18-08	M18X1.5	Z1/2"X14	12	21.4	36.4	22	22
1CN-22-08	M22X1.5	Z1/2"X14	15	22.4	37.4	24	27
1CN-22-20	M22X1.5	Z1.1/4"X11.5	15	29.8	37.4	46	27
1CN-26-08	M26X1.5	Z1/2"X14	18	22.9	39.4	27	32	16轻系列L
1CN-26-12	M26X1.5	Z3/4"X14	18	22.4	38.9	30	32
1CN-30-08	M30X2	Z1/2"X14	22	24.4	40.5	32	36
1CN-30-12	M30X2	Z3/4"X14	22	24.4	40.9	32	36
1CN-36-16	M36X2	Z1"X11.5	28	29.8	46.3	41	41
1CN-36-20	M36X2	Z1.1/4"X11.5	28	31.3	46.3	46	41
1CN-45-20	M45X2	Z1.1/4"X11.5	35	30.3	51.8	46	50
1CN-52-20	M52X2	Z1.1/4"X11.5	42	31.8	55.8	55	60
1CN-52-24	M52X2	Z1.1/2"X11.5	42	32.8	55.8	55	60
1DN-14-04	M14X1.5	Z1/4"X18	6	22.2	37.2	17	17	63重系列S
1DN-16-04	M16X1.5	Z1/4"X18	8	22.2	37.2	17	19
1DN-18-04	M18X1.5	Z1/4"X18	10	21.7	38.2	19	22
1DN-18-06	M18X1.5	Z3/8"X18	10	22.4	38.9	19	22
1DN-20-04	M20X1.5	Z1/4"X18	12	23.7	40.2	22	24
1DN-20-06	M20X1.5	Z3/8"X18	12	24.4	40.9	22	24
1DN-20-08	M20X1.5	Z1/2"X14	12	25.9	42.4	22	24
1DN-22-08	M22X1.5	Z1/2"X14	14	27.4	45.4	24	27
1DN-24-08	M24X1.5	Z1/2"X14	16	26.9	45.4	27	30
1DN-30-12	M30X2	Z3/4"X14	20	28.4	49.9	32	36	40重系列S
1DN-36-12	M36X2	Z3/4"X14	25	30.9	34	41	46
1DN-36-16	M36X2	Z1"X11.5	25	35.3	59.3	41	46
1DN-42-16	M42X2	Z1"X11.5	30	35.8	59.3	46	46
1DN-42-20	M42X2	Z1.1/4"X11.5	30	36.3	62.8	46	50
1DN-52-24	M52X2	Z1.1/2"X11.5	38	39.8	70.8	55	60
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如10N-30-12RN。
Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 10N-30-12RN.
