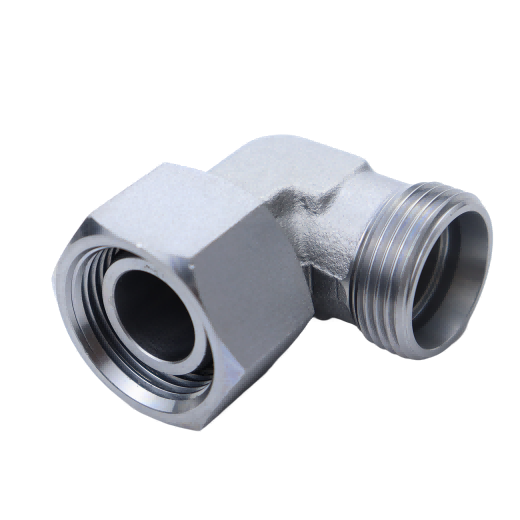

2C9 Swivel nut elbow EO 24° cone end_EO 24° DKO swivel

Description

Reviews

1. Definition: 24°DKO swivel connector is according to DIN 3861/DIN EN ISO 8434-4 standard, this end including Fitting body, Nut, O-ring and thrust wire(assembly). There are two types of usage, One is 24°welding cone type nipple(will need nut and o-ring to assembly), another one is Swivel type connector assembled by fittings body, nut, o-ring and thrust wire.

2. Methods of Connection: 24°DKO swivel connector female will mate to male connection DIN 3861/ISO 8434-1.

Product Description

Part No.: 2C9, 2D9

Features:

➢Made of carbon steel, leak-proof and reliable.

➢Engineered for a secure and reliable seal, ensuring no fluid leaks.

➢Surface-treated for enhanced protection against rust and wear.

➢Designed for quick and hassle-free assembly, reducing downtime.

Specifications

PART NO.	T H R E A D		TUBE O.D.		DIMENSIONS						MPa
PART NO.	E	F	D1	D2	I1	L1	L2	S1	S2	S3	MPa
2C9-12	M12X1.5	M12X1.5	6	6	12	27	26	12	14	14	25L
2C9-14	M14X1.5	M14X1.5	8	8	14	29	27.5	12	17	17
2C9-16	M16X1.5	M16X1.5	10	10	15	30	29	14	19	19
2C9-18	M18X1.5	M18X1.5	12	12	17	32	29.5	17	22	22
2C9-22	M22X1.5	M22X1.5	15	15	21	36	32.5	19	27	27
2C9-26	M26X1.5	M26X1.5	18	18	23.5	40	35.5	24	32	32
2C9-30	M30X2	M30X2	22	22	27.5	44	38.5	27	36	36	16L
2C9-36	M36X2	M36X2	218	28	30.5	47	41.5	36	41	41
2C9-45	M45X2	M45X2	35	35	34.5	56	51	41	50	50
2C9-52	M52X2	M52X2	42	42	40	63	56	50	60	60
2D9-14	M14X1.5	M14X1.5	6	6	16	31	27	12	17	17	63S
2D9-16	M16X1.5	M16X1.5	8	8	17	32	27.5	14	19	19
2D9-18	M18X1.5	M18X1.5	10	10	17.5	34	30	17	22	22
2D9-20	M20X1.5	M20X1.5	12	12	21.5	38	31	17	24	24
2D9-22	M22X1.5	M22X1.5	14	14	22	40	35	19	27	27
2D9-24	M24X1.5	M24X1.5	16	16	24.5	43	36.5	24	30	30	40S
2D9-30	M30X2	M30X2	20	20	26.5	48	44.5	27	36	36
2D9-36	M36X2	M36X2	25	25	30	54	50	36	46	46
2D9-42	M42X2	M42X2	30	30	35.5	62	55	41	50	50
2D9-52	M52X2	M52X2	38	38	41	72	63	50	60	60	31.5S
Note:In case if you are interested to order the adapter in complete set with cutting ringand nut ,it is necessary to insert suffx"RN"after our part no.,for example 2C9-30RN.
