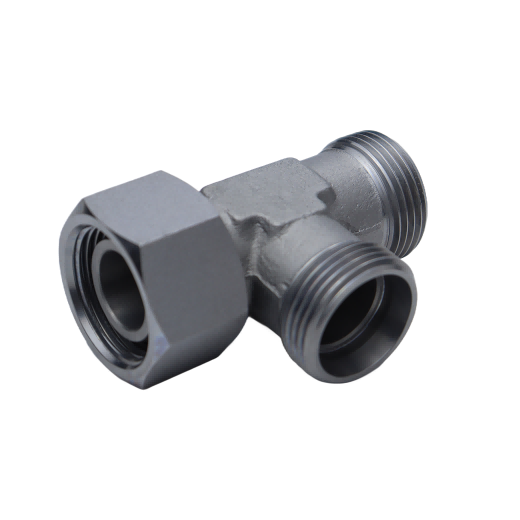

DIN 2353-(CC-RN) Barrel Tee Fittings with Swivel Nut

Description

Reviews

Design & Structure

Barrel Tee Configuration: The fitting has a barrel-shaped body with three ports, which allows fluid to flow in multiple directions. It is ideal for creating a branching point in systems requiring three-way fluid distribution.
Swivel Nut Design: The swivel nut allows for rotation during installation, providing flexibility in alignment and ensuring that the fitting can be tightened without misaligning the threads. This feature makes the fitting easier to install in confined spaces.
Material Options
- Carbon Steel (Zinc-Plated): Suitable for general hydraulic applications, offering strength and resistance to corrosion.
- Stainless Steel (AISI 316L): Provides excellent corrosion resistance, making it ideal for harsh environments such as marine, chemical, and food industries.
- Brass: A cost-effective material choice for low-pressure pneumatic systems and fluid applications.

Product Description

Part No.: CC-RN,CD-RN; CC,CD

Features:

➢Made of carbon steel, leak-proof and reliable.

➢Engineered for a secure and reliable seal, ensuring no fluid leaks.

➢Surface-treated for enhanced protection against rust and wear.

➢Conforms to JIC standards, making it suitable for various hydraulic systems.

➢Designed for quick and hassle-free assembly, reducing downtime.

Specifications

代号	螺纹	THREAD		管子外径 TUBE O.D.			尺寸		DIMENSIONS				压力等级
PART NO.	E,F		G	D1,D2	D3	l1,l2	L1,L2	L3		S1	S2,S3	S4	MPa
CC-12	M12X1.5		M12X1.5	6	6	12	27	26		12	14	14	31.5轻系列L
CC-14	M14X1.5		M14X1.5	8	8	14	29	27.5		12	17	17
CC-16	M16X1.5		M16X1.5	10	10	15	30	29		14	19	19
CC-18	M18X1.5		M18X1.5	12	12	17	32	29.5		17	22	22
CC-22	M22X1.5		M22X1.5	15	15	21	36	32.5		19	27	27
CC-26	M26X1.5		M26X1.5	18	18	23.5	40	35.5		24	32	32
CC-30	M30X2		M30X2	22	22	27.5	44	38.5		27	36	36	16轻系列L
CC-36	M36X2		M36X2	28	28	30.5	47	41.5		36	41	41
CC-45	M45X2		M45X2	35	35	34.5	56	51		41	50	50
CC-52	M52X2		M52X2	42	42	40	63	56		50	60	60
CD-14	M14X1.5		M14X1.5	6	6	16	31	27		12	17	17	63重系列S
CD-16	M16X1.5		M16X1.5	8	8	17	32	27.5		14	19	19
CD-18	M18X1.5		M18X1.5	10	10	17.5	34	30		17	22	22
CD-20	M20X1.5		M20X1.5	12	12	21.5	38	31		17	24	24
CD-22	M22X1.5		M22X1.5	14	14	22	40	35		19	27	27
CD-24	M24X1.5		M24X1.5	16	16	24.5	43	36.5		24	30	30	40重系列S
CD-30	M30X2		M30X2	20	20	26.5	48	44.5		27	36	36
CD-36	M36X2		M36X2	25	25	30	54	50		36	46	46
CD-42	M42X2		M42X2	30	30	35.5	62	55		41	50	50
CD-52	M52X2		M52X2	38	38	41	72	63		50	60	60	31.5 重系列S
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”, 如CC-30RN。 Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example CC-30RN.
