Branch Tee Design: This fitting has a three-port tee configuration designed to split or combine fluid flow at a 90-degree angle.
Metric Male 24° Cone: The branch and stud ends feature a 24° cone (similar to other metric compression fittings) for a reliable and leak-free connection.
Adjustable Stud End: The adjustable stud ends allow flexibility during installation, ensuring proper alignment, especially in tight or confined spaces.
ISO 6149 Standard Compliance: This fitting conforms to the ISO 6149 standard, ensuring compatibility with other ISO-standard male thread components, providing seamless integration in fluid circuits.
2. Material Options
Carbon Steel (Zinc-Plated): Commonly used in hydraulic applications, providing corrosion resistance and strength.
Stainless Steel (AISI 316L): Ideal for applications in corrosive environments such as marine, food processing, and chemical industries.
Brass: A cost-effective option for lower pressure or pneumatic applications.
3. Pressure & Temperature Range
Pressure Rating: Typically up to 315 bar for light-duty versions and up to 630 bar for heavy-duty versions.
Temperature Range: Commonly rated from -40°C to 120°C, but specific ranges depend on the material used and the type of O-ring selected for sealing.
Product Description

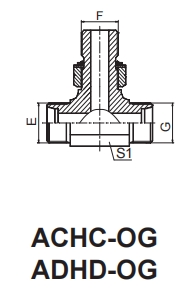

Part No.: ACHC-OG/RN,ADHD-OG/RN; ACHC-OG,ADHD-OG
Features:
➢Made of carbon steel, leak-proof and reliable.
➢Engineered for a secure and reliable seal, ensuring no fluid leaks.
➢Surface-treated for enhanced protection against rust and wear.
➢Conforms to JIC standards, making it suitable for various hydraulic systems.
➢Designed for quick and hassle-free assembly, reducing downtime.
Note：1 In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example ACHC-30-27-30OG/RN. 2 F end is connected with ISO 9974-1port and connected with ISO 6149-1 port without retaining ring.
