DIN 2353-(ACCG-OG/RN)Run Tee BARREL TEE BSP THREAD ADJUSTABLE STUD ENDS WITH O-RING SEALING

Description

Reviews

his BARREL TEE incorporates a dual sealing system to ensure a reliable connection:

O-Ring Sealing on BSP Adjustable Stud Ends
- The BSP parallel thread (G-thread) features an O-ring at the base of the stud.
- When tightened against a flat-faced port or sealing washer, the O-ring compresses, creating a leak-proof seal.
- This sealing method ensures reliable performance without requiring additional sealants.
24° Cone Sealing on the Metric Side
- The metric compression end follows the DIN 2353 standard, utilizing a 24° cone with an elastomer O-ring for a secure, high-pressure seal.
- A cutting ring deforms onto the tube during assembly, ensuring strong mechanical retention and vibration resistance.

Product Description

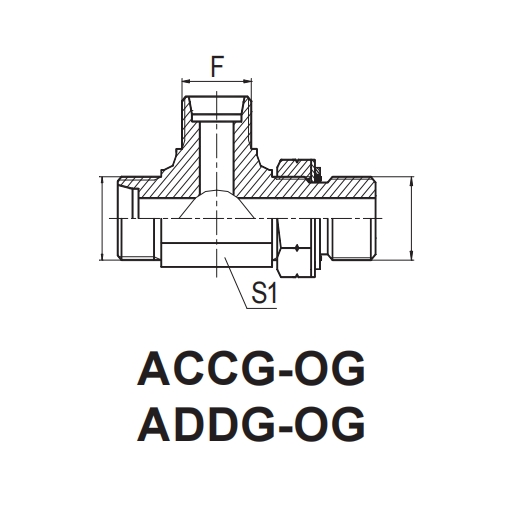

Part No.: ACCG-OG/RN,ADDG-OG/RN; ACCG-OG,ADDG-OG

Features:

➢Made of carbon steel, leak-proof and reliable.

➢Engineered for a secure and reliable seal, ensuring no fluid leaks.

➢Surface-treated for enhanced protection against rust and wear.

➢Conforms to JIC standards, making it suitable for various hydraulic systems.

➢Designed for quick and hassle-free assembly, reducing downtime.

Specifications

代号	螺纹	THREAD	管子外径 TUBE O.D.		尺寸		DIMENSIONS				压力等级
PART NO.	E,F	G	D1,D2	l1,l2	L1,L2	L3		S1	S2,S3	S4	MPa
ACCG-12-12-02OG	M12X1.5	G1/8"X28	6	13	28	26.2		11	14	14	31.5轻系列L
ACCG-14-14-04OG	M14X1.5	G1/4"X19	8	15.5	30.5	31.3		14	17	19
ACCG-16-16-04OG	M16X1.5	G1/4"X19	10	17.5	32.5	32.5		16	19	19
ACCG-18-18-06OG	M18X1.5	G3/8"X19	12	19	34	36.8		19	22	22
ACCG-22-22-08OG	M22X1.5	G1/2"X14	15	22	37	43.2		22	27	27
ACCG-26-26-08OG	M26X1.5	G1/2"X14	18	25.5	42	46.5		27	32	27
ACCG-30-30-12OG	M30X2	G3/4"X14	22	29.3	45.8	52		30	36	32	16轻系列L
ACCG-36-36-16OG	M36X2	G1"X11	28	33.3	49.8	56		36	41	41
ACCG-45-45-20OG	M45X2	G1.1/4"X11	35	39.2	60.7	63		48	50	50
ADDG-14-14-04OG	M14X1.5	G1/4"X19	6	17.5	32.5	31.3		14	17	19	63重系列S
ADDG-16-16-04OG	M16X1.5	G1/4"X19	8	18.7	33.7	32.5		16	19	19
ADDG-18-18-06OG	M18X1.5	G3/8"X19	10	19.5	36	36.8		19	22	22
ADDG-20-20-06OG	M20X1.5	G3/8"X19	12	19.5	36	36.8		19	24	22
ADDG-22-22-08OG	M22X1.5	G1/2"X14	14	23	41	43.2		22	27	27
ADDG-24-24-08OG	M24X1.5	G1/2"X14	16	24	42.5	44		24	30	27	40重系列S
ADDG-30-30-12OG	M30X2	G3/4"X14	20	28.3	49.8	52		30	36	32
ADDG-36-36-16OG	M36X2	G1"X11	25	32.8	56.8	56		36	46	41
ADDG-42-42-20OG	M42X2	G1.1/4"X11	30	36.2	62.7	58		41	50	50
注：如需带卡套及卡套螺母,订货时请在代号后加“RN”,如ACCG-18-18-06OG/RN。
Note：In case if you are interested to order the adapter in complete set with cutting ring and
nut ,it is necessary to insert suffix "RN" after our Part No.，for example ACCG-18-18-06OG/RN.
