DIN 2353-(5CM)Straight Connector: METRIC FEMALE STUD FITTINGS

Description

Reviews

Product Description

Part No.: 5CM,5DM; 5CM-RN,5DM-RN

Features:

➢Made of carbon steel, leak-proof and reliable.

➢Engineered for a secure and reliable seal, ensuring no fluid leaks.

➢Surface-treated for enhanced protection against rust and wear.

➢Conforms to JIC standards, making it suitable for various hydraulic systems.

➢Designed for quick and hassle-free assembly, reducing downtime.

Specifications

代号	螺纹 THREAD		管子外径 TUBE O.D.	尺寸 DIMENSIONS					压力等级

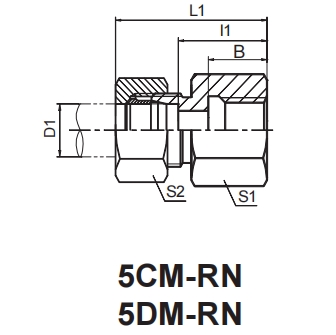

PART NO.	E	F	D1	B	l1	L1	S1	S2	MPa
5CM-12-10	M12X1.5	M10X1	6	12.5	19.5	34	14	14	25轻系列L
5CM-14-12	M14X1.5	M12X1.5	8	17	24	39	17	17
5CM-16-14	M16X1.5	M14X1.5	10	17	25	40	19	19
5CM-18-16	M18X1.5	M16X1.5	12	17	26	41	22	22
5CM-22-18	M22X1.5	M18X1.5	15	17	28	43	24	27
5CM-26-22	M26X1.5	M22X1.5	18	19	29.5	46	30	32
5CM-30-26	M30X2	M26X1.5	22	21	34.5	51	32	36	16轻系列L
5CM-36-33	M36X2	M33X2	28	24	37.5	54	41	41
5CM-45-42	M45X2	M42X2	35	26	40.5	62	55	50
5CM-52-48	M52X2	M48X2	42	28	42	65	60	60
5DM-14-12	M14X1.5	M12X1.5	6	17	26	41	17	17	63重系列S
5DM-16-14	M16X1.5	M14X1.5	8	17	26	41	19	19
5DM-18-16	M18X1.5	M16X1.5	10	17	26.5	43	22	22
5DM-20-18	M20X1.5	M18X1.5	12	17	27.5	44	24	24
5DM-22-20	M22X1.5	M20X1.5	14	19	31	49	27	27
5DM-24-22	M24X1.5	M22X1.5	16	19	30.5	49	30	30
5DM-30-27	M30X2	M27X2	20	22	34.5	56	36	36	40重系列S
5DM-36-33	M36X2	M33X2	25	24	37	61	41	46
5DM-42	M42X2	M42X2	30	26	41.5	68	55	50
5DM-52-48	M52X2	M48X2	38	28	43	74	60	60	25 重系列S
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”, 如 5DM-30-27RN。 Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 5DM-30-27RN.
