SAE J1453 – Specifies the ORFS (O-Ring Face Seal) male thread, offering a flat-face, elastomer-sealed connection ideal for leak-free operation.
ISO 11926-2 – Covers SAE straight thread ports with O-ring boss sealing (ORB), commonly used in North American hydraulic systems.

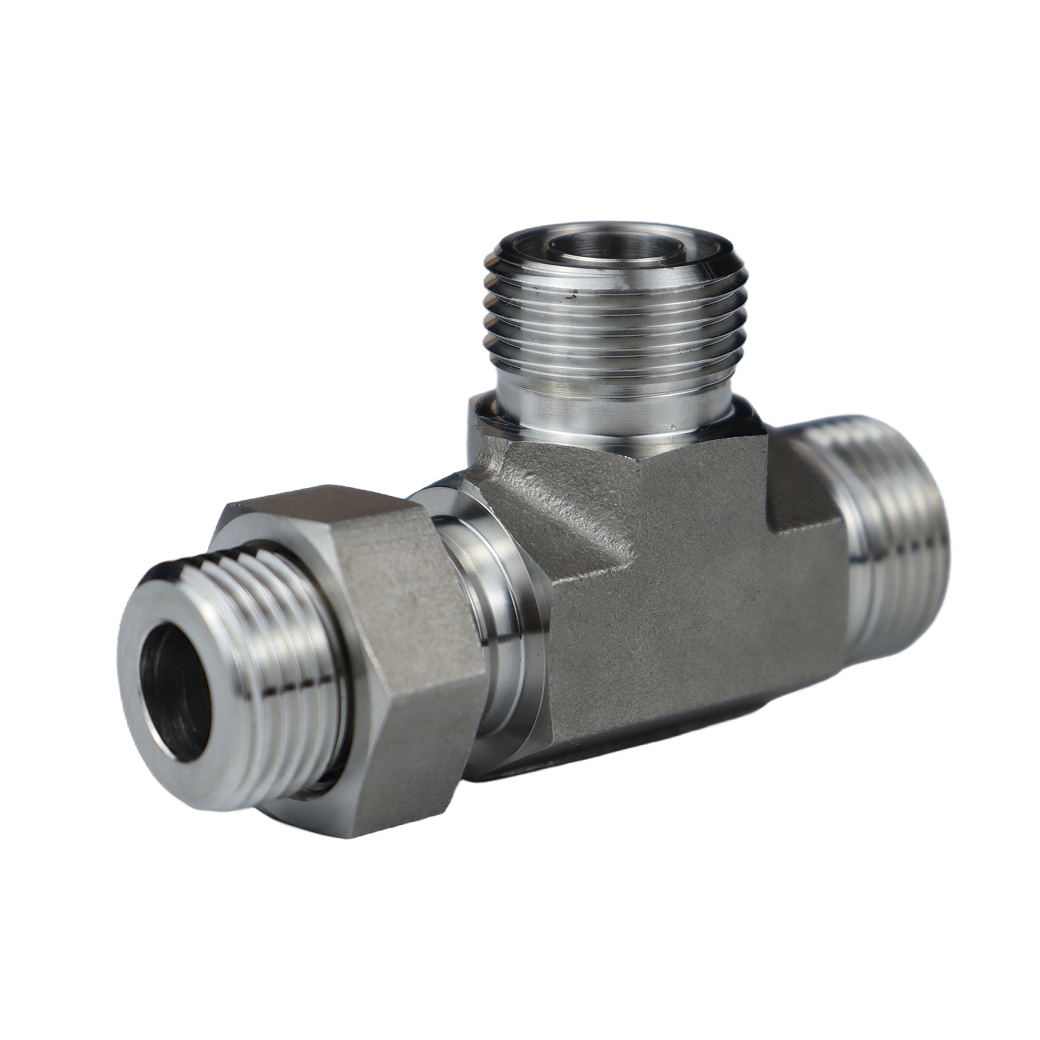

Straight Thread Run Tee SAE 520428
FS6804 ORS-ORS-SAE O-Ring Boss
Seal-Lok ORFS Tee R5OLO
FF1865T
Connection Configuration
Run Ports (Straight Line): ORFS Male threads with O-ring face seal (SAE J1453)
Branch Port: SAE O-Ring Boss (ORB) Adjustable Stud End
Product Description
Specifications
PART.NO
TUBE O.D
B1 THREAD
B2 THREAD
B3 THREAD
B1 DRILL
B2 DRILL
B3 DRILL
M1 LGTH
M2 LGTH
L1 LGTH
C HEX
BODY HEX
FS6804-04-04-04-NWO-FG
1/4
9/16-18
7/16-20
9/16-18
0.172
0.172
0.172
0.85
1.29
0.85
0.624
0.562
FS6804-04-06-04-NWO-FG
1/4
9/16-18
9/16-18
9/16-18
0.172
0.264
0.172
0.92
1.45
0.92
0.750
0.750
FS6804-06-04-06-NWO-FG
3/8
11/16-16
7/16-20
11/16-16
0.264
0.172
0.264
0.98
1.37
0.98
0.625
0.750
FS6804-06-06-06-NWO-FG
3/8
11/16-16
9/16-18
11/16-16
0.264
0.264
0.264
0.98
1.45
0.98
0.750
0.750
FS6804-06-08-06-NWO-FG
3/8
11/16-16
3/4-16
11/16-16
0.264
0.378
0.264
1.04
1.60
1.04
0.938
0.750
FS6804-08-06-08-NWO-FG
1/2
13/16-16
9/16-18
13/16-16
0.378
0.295
0.378
1.10
1.45
1.10
0.750
0.750
FS6804-08-08-04-NWO-FG
1/2
13/16-16
3/4-16
9/16-18
0.378
0.378
0.172
1.10
1.60
0.97
0.938
0.750
FS6804-08-08-08-NWO-FG
1/2
13/16-16
3/4-16
13/16-16
0.378
0.378
0.378
1.10
1.60
1.10
0.938
0.750
FS6804-08-10-08-NWO-FG
1/2
13/16-16
7/8-14
13/16-16
0.378
0.484
0.378
1.21
1.97
1.21
1.062
1.062
FS6804-08-12-04-NWO-FG
1/2
13/16-16
1-1/16-12
9/16-18
0.378
0.609
0.172
1.32
2.17
1.19
1.375
1.188
FS6804-08-12-08-NWO-FG
1/2
13/16-16
1-1/16-12
13/16-16
0.378
0.609
0.378
1.32
2.17
1.32
1.375
1.188
FS6804-10-10-06-NWO-FG
5/8
1-14
7/8-14
11/16-16
0.484
0.484
0.264
1.31
1.97
1.15
1.062
1.062
FS6804-10-10-10-NWO-FG
5/8
1-14
7/8-14
1-14
0.484
0.484
0.484
1.31
1.97
1.31
1.062
1.062
FS6804-10-12-10-NWO-FG
5/8
1-14
1-1/16-12
1-14
0.484
0.609
0.484
1.44
2.17
1.41
1.375
1.188
FS6804-12-08-08-NWO-FG
3/4
1-3/16-12
3/4-16
13/16-16
0.609
0.378
0.378
1.47
1.84
1.32
0.938
1.188
FS6804-12-12-08-NWO-FG
3/4
1-3/16-12
1-1/16-12
13/16-16
0.609
0.609
0.378
1.47
2.17
1.32
1.375
1.188
FS6804-12-12-12-NWO-FG
3/4
1-3/16-12
1-1/16-12
1-3/16-12
0.609
0.609
0.609
1.47
2.17
1.47
1.375
1.188
FS6804-12-12-16-NWO-FG
3/4
1-3/16-12
1-1/16-12
1-7/16-12
0.609
0.609
0.811
1.62
2.32
1.64
1.375
1.438
FS6804-16-12-12-NWO-FG
1
1-7/16-12
1-1/16-12
1-3/16-12
0.811
0.609
0.609
1.64
2.32
1.62
1.375
1.438
FS6804-16-16-16-NWO-FG
1
1-7/16-12
1-5/16-12
1-7/16-12
0.811
0.811
0.811
1.64
2.35
1.64
1.625
1.438
FS6804-16-24-16-NWO-FG
1
1-7/16-12
1-7/8-12
1-7/16-12
0.811
1.260
0.811
1.92
2.59
1.92
2.125
1.875
FS6804-20-20-20-NWO-FG
1-1/4
1-11/16-12
1-5/8-12
1-11/16-12
1.024
1.024
1.024
1.76
2.45
1.76
1.875
1.625
FS6804-24-24-24-NWO-FG
1-1/2
2-12
1-7/8-12
2-12
1.260
1.260
1.260
1.92
2.59
1.92
2.125
1.875
代 号
螺 纹
THREAD
O 形圈 O-RING
尺 寸
DIMENSIONS
PART NO.
E
F
G
E 端
F 端
G 端
A
B
C
S1
S2
AFFO-04OG
9/16"X18
9/16"X18
7/16"X20
O011
O011
O904
23
23
30
14
17
AFFO-04-04-06OG
9/16"X18
9/16"X18
9/16"X18
O011
O011
O906
23
23
32
14
19
AFFO-06OG
11/16"X16
11/16"X16
9/16"X18
O012
O012
O906
27.5
27.5
35.5
19
19
AFFO-06-06-08OG
11/16"X16
11/16"X16
3/4"X16
O012
O012
O908
27.5
27.5
38
19
24
AFFO-08-08-06OG
13/16"X16
13/16"X16
9/16"X18
O014
O014
O906
31
31
37.5
22
19
AFFO-08OG
13/16"X16
13/16"X16
3/4"X16
O014
O014
O908
31
31
40.5
22
24
AFFO-08-08-10OG
13/16"X16
13/16"X16
7/8"X14
O014
O014
O910
31
31
45.3
22
27
AFFO-08-08-12OG
13/16"X16
13/16"X16
1.1/16"X12
O014
O014
O912
34.5
34.5
54
27
32
AFFO-10OG
1"X14
1"X14
7/8"X14
O016
O016
O910
36.5
36.5
50.8
27
27
AFFO-10-10-12OG
1"X14
1"X14
1.1/16"X12
O016
O016
O912
36.5
36.5
52
27
32
AFFO-12OG
1.3/16"X12
1.3/16"X12
1.1/16"X12
O018
O018
O912
40.3
40.3
55.3
30
32
AFFO-16-16-12OG
1.7/16"X12
1.7/16"X12
1.1/16"X12
O021
O021
O912
44.5
44.5
59.5
36
32
AFFO-16OG
1.7/16"X12
1.7/16"X12
1.5/16"X12
O021
O021
O916
44.5
44.5
59.3
36
41
AFFO-20OG
1.11/16"X12
1.11/16"X12
1.5/8"X12
O025
O025
O920
47.5
47.5
60.5
41
50
AFFO-24OG
2"X12
2"X12
1.7/8"X12
O029
O029
O924
53.5
53.5
68.5
50
55
注：F 端与ISO 11926-1 油口相配。
Note：F end is connected with ISO 11926-1 port.
